A Sojourn into Trojan
Posted: Friday, December 22, 2006 - 06:27 AM UTC
Having been laid low with the dreaded "lurgies"--decided to cut a few bits of plastic to keep me sane....something simple...
TROJAN AEV
Well a start ---now feel better
BARV
(GOSMG)
coldwarrior
Iowa, United States
Member Since: September 27, 2006
entire network: 54 Posts
KitMaker Network: 0 Posts
Member Since: September 27, 2006
entire network: 54 Posts
KitMaker Network: 0 Posts
Posted: Friday, December 22, 2006 - 09:49 AM UTC
Its looking great! Got any pointers on joining panels on angles for me? I love the crane arm! You going to put all the hydrolic lines along the side (Im sure you are)? I have made a scoop bucket and a skid loader front in my minds eye hundreds of times. Did you have any trouble with wrapping the back panel to the bucket shape?
Good luck on the rest of it!
Good luck on the rest of it!
seb43
Paris, France
Member Since: August 30, 2005
entire network: 2,315 Posts
KitMaker Network: 124 Posts
Member Since: August 30, 2005
entire network: 2,315 Posts
KitMaker Network: 124 Posts
Posted: Friday, December 22, 2006 - 10:08 AM UTC
BARV
great man really great i love it
keep post it
Seb
great man really great i love it
keep post it
Seb
Posted: Sunday, December 31, 2006 - 03:14 AM UTC
Here we go ----ending a year as I started ---*A half -built beastie*
Some pics ........
Some areas may have to be revamped as I go but this is the main part..
See you all next year..
aye
BARV
(GOSMG)
HAVE A HAPPY ONE !!
Mech
Ontario, Canada
Member Since: July 20, 2002
entire network: 281 Posts
KitMaker Network: 63 Posts
Member Since: July 20, 2002
entire network: 281 Posts
KitMaker Network: 63 Posts
Posted: Sunday, December 31, 2006 - 07:34 PM UTC
Hi Steve
Another great scratch build of an unusual subject. Keep up the excellent work.
Regards
Ralph
Another great scratch build of an unusual subject. Keep up the excellent work.
Regards
Ralph
AVRE165
England - South East, United Kingdom
Member Since: December 31, 2002
entire network: 181 Posts
KitMaker Network: 0 Posts
Member Since: December 31, 2002
entire network: 181 Posts
KitMaker Network: 0 Posts
Posted: Monday, January 01, 2007 - 03:07 AM UTC
Hi steve
you know my poistion on this beast, so get it right?
looking good
speak soon ossie
you know my poistion on this beast, so get it right?
looking good
speak soon ossie
gcdavidson
Ontario, Canada
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Posted: Monday, January 01, 2007 - 12:55 PM UTC
Steve, you're a man after my heart :-)
The trojan is coming along great - do you need any help with references? I was planning to build the AEV but it went pear shaped on me.
Cheers,
Graeme
The trojan is coming along great - do you need any help with references? I was planning to build the AEV but it went pear shaped on me.
Cheers,
Graeme
ekke
Nordrhein-Westfalen, Germany
Member Since: June 08, 2004
entire network: 285 Posts
KitMaker Network: 0 Posts
Member Since: June 08, 2004
entire network: 285 Posts
KitMaker Network: 0 Posts
Posted: Tuesday, January 02, 2007 - 02:48 AM UTC
As usual your model seems to turn out legendaryly awesome :-)
I admire your scratchbuilding skills!
Greetings, ekke
I admire your scratchbuilding skills!
Greetings, ekke
AVRE165
England - South East, United Kingdom
Member Since: December 31, 2002
entire network: 181 Posts
KitMaker Network: 0 Posts
Member Since: December 31, 2002
entire network: 181 Posts
KitMaker Network: 0 Posts
Posted: Tuesday, January 02, 2007 - 03:03 AM UTC
Hi
I have just been building a hull with multi angles and a turret with even worse angles to do.
Ok this is my way.
it you look at a plan, or side view this is even better. Let’s say you want the length or height of the sides of the tank I am building the leopard 2 prototype.
By taking the angle of the sides which lean inwards from the front on view I know it is 45 degrees inwards. Now for the length, measure this as normal
Draw an angle of 45 degrees at the top of the rear of the engine deck down at the end of the hull then draw lines to this to represent where the different heights in the side are. Now measure this. This is the height of the side piece.
Only take measurements of widths on the plan view
See my post latest WIP
Hope this helps
Ossie
I have just been building a hull with multi angles and a turret with even worse angles to do.
Ok this is my way.
it you look at a plan, or side view this is even better. Let’s say you want the length or height of the sides of the tank I am building the leopard 2 prototype.
By taking the angle of the sides which lean inwards from the front on view I know it is 45 degrees inwards. Now for the length, measure this as normal
Draw an angle of 45 degrees at the top of the rear of the engine deck down at the end of the hull then draw lines to this to represent where the different heights in the side are. Now measure this. This is the height of the side piece.
Only take measurements of widths on the plan view
See my post latest WIP
Hope this helps
Ossie
Posted: Tuesday, January 02, 2007 - 04:54 AM UTC
Steve,
What happened to the "I'll post it cut by cut" scenario?
What happened to the "I'll post it cut by cut" scenario?
Posted: Wednesday, January 03, 2007 - 02:30 AM UTC
Did I say that -----well it may happen soon ... .....just found out that I have missed out 2 parts and mis-calculated an angled plate-or 3.. ---result ---tear it apart and go again ......knew I should have waited till I was better
OK.....will see if I can get it right this time ---its only time ---and patience .....getting a headache now --- get a and relax ---I am sane !!!--I know I am ...aint I ?????
I hate Murdo ........ :-)
aye
BARV
(GOSMG)
Posted: Wednesday, January 03, 2007 - 04:37 AM UTC
Quoted Text
Did I say that -----well it may happen soon ... .....just found out that I have missed out 2 parts and mis-calculated an angled plate-or 3.. ---result ---tear it apart and go again ......knew I should have waited till I was better
OK.....will see if I can get it right this time ---its only time ---and patience .....getting a headache now --- get a and relax ---I am sane !!!--I know I am ...aint I ?????
I hate Murdo ........ :-)
aye
BARV
(GOSMG)
"I hate Murdo"???
I suppose that's me off the Christmas Card list AGAIN!
Never mind! I have a year to get back on it...
And 10 months to REALLY annoy him before I have to crawl to get back on his list.
:-) :-) :-)
Posted: Friday, January 12, 2007 - 02:10 AM UTC
I left you in this (waiting ) position ...continue to look this way and I will continue to produce the rabbit from the hat
Having rebuilt the front and re-ajusted the jib ....the following is where I was last time ..

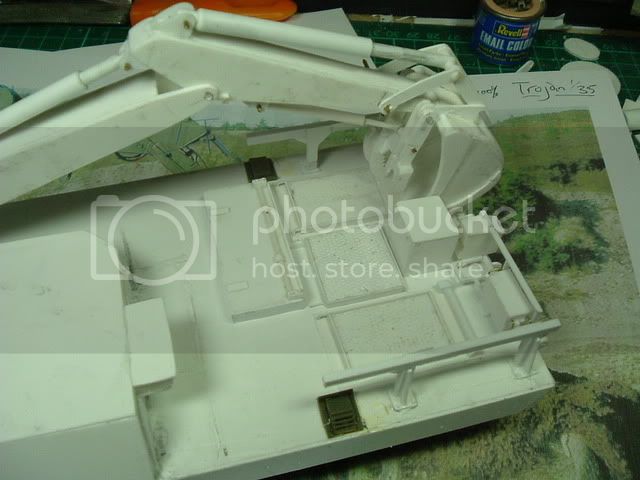

Now .. the engine deck (pig) is starting to come together though I may be "guestimating" on what is close to rear of command " block
If you have any info --pics or kowledge of rear deck please e-m/p-m
Thanks
aye
BARV
(GOSG)
Erik67
Buskerud, Norway
Member Since: July 31, 2005
entire network: 1,871 Posts
KitMaker Network: 376 Posts
Member Since: July 31, 2005
entire network: 1,871 Posts
KitMaker Network: 376 Posts
Posted: Friday, January 12, 2007 - 02:36 AM UTC
I have some info for you Steve... YOU ARE INSANE!!!
Great build as usual and I'm really looking forward to see this beast finished. And of course you deserve a great
Erik
Great build as usual and I'm really looking forward to see this beast finished. And of course you deserve a great
Erik
gcdavidson
Ontario, Canada
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Posted: Friday, January 12, 2007 - 05:39 AM UTC
Steve, I sent you pics of the rear of that command block in the second batch? Did you not get them?
Posted: Friday, January 12, 2007 - 04:54 PM UTC
Graeme
----See p-m
Meanwhile have a look at this .. http://www.bsn.org.uk/view_all.php?id=12319
aye
BARV
(GOSMG)
Posted: Friday, January 19, 2007 - 05:16 AM UTC
Been busy ---not a lot of time on bench ...such i life ...any way -----
Rebuilt rear of command box ---revamped main deck hatch ---built and fitted blade and got "stubs" on .......building "lane marker "boxes.....
more when I recharge my camera
aye
BARV
(GOSMG)
Posted: Sunday, January 21, 2007 - 05:50 AM UTC
Blade finished.......cupola done and "lids"on....working on details now
aye
[:::] BARV
(GOSMG)
LeoCmdr
Alberta, Canada
Member Since: January 19, 2005
entire network: 4,085 Posts
KitMaker Network: 160 Posts
Member Since: January 19, 2005
entire network: 4,085 Posts
KitMaker Network: 160 Posts
Posted: Sunday, January 21, 2007 - 06:06 AM UTC
Steve,
Your Trojan is looking great. I hope you'll be adding a fascine roll when you get to the final details.
Your Trojan is looking great. I hope you'll be adding a fascine roll when you get to the final details.
gcdavidson
Ontario, Canada
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Member Since: August 05, 2003
entire network: 1,698 Posts
KitMaker Network: 130 Posts
Posted: Sunday, January 21, 2007 - 06:13 AM UTC
keep at 'er Steve, the AEV looks as mean & nasty as the real thing!
Posted: Wednesday, January 24, 2007 - 05:56 AM UTC

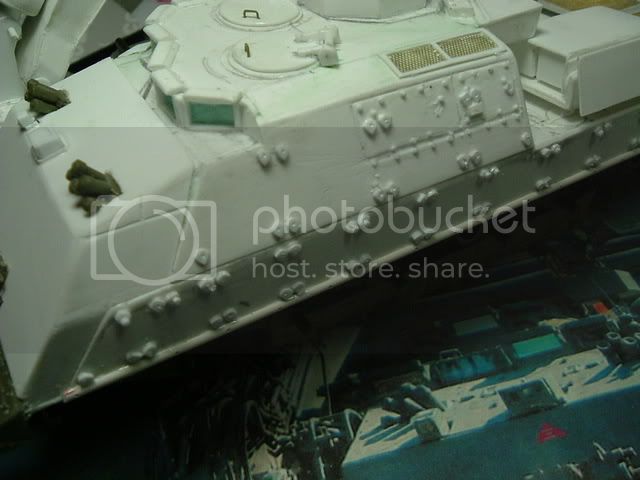

Started the little fiddly bits now
Cable clips (from kit)
Bucket bump pad (right)-new grills

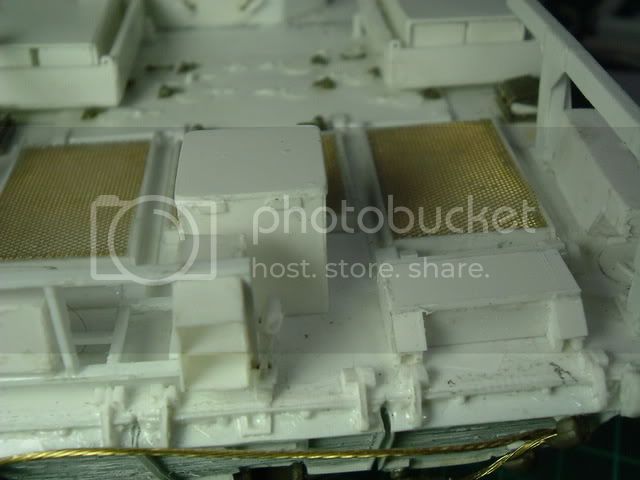

Back hatch and top grill
Carrier pins on rails (they do move ) and rings
Front view -smoke pots

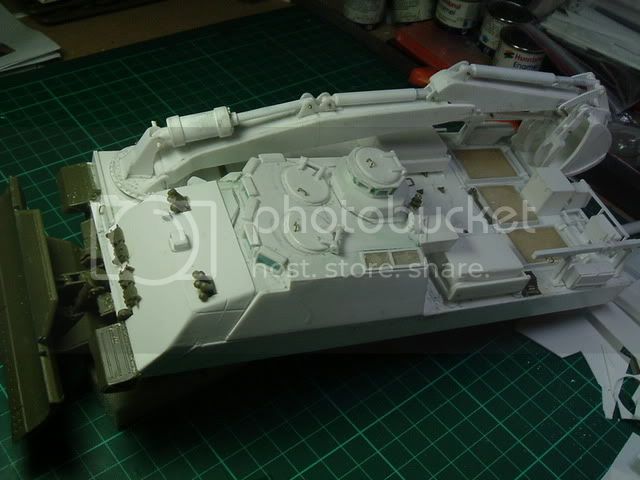

Over view
BTW...It was consigned to *File13* earlier today--had a **NFI** moment
Jib tweaks next and a good tidy up
aye
BARV
(GOSMG)
Posted: Friday, January 26, 2007 - 05:40 AM UTC
A few updated pics
Revamped "finger" arms
Mounting blocks

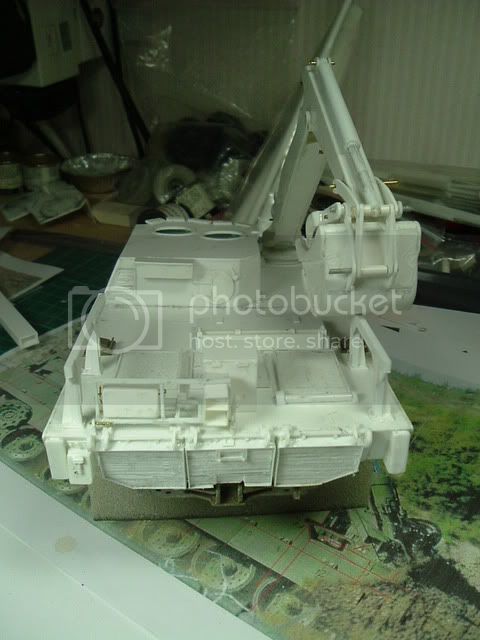

Tail view
Starting to look like a "Beastie"
Hydraulics soon
aye
BARV
(GOSMG)
Posted: Wednesday, January 31, 2007 - 01:56 AM UTC
Up-date......

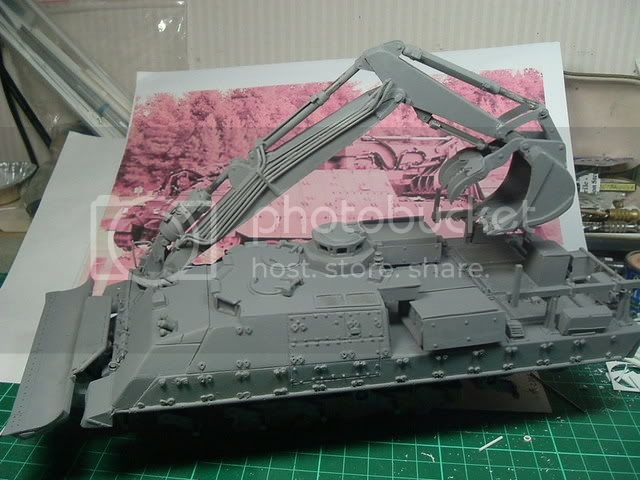

Hydraulic "mare's -nest " started ----flexable pipes (rubber tubing ) will be added after painting

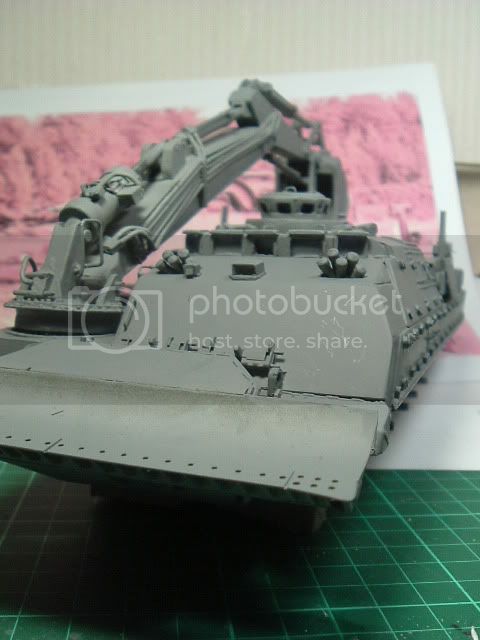

Rattlecan Car undercoat---- yes.... I forgot the head-lights --now on
First coat being applied --more soon
aye
BARV
(GOSMG)
LeoCmdr
Alberta, Canada
Member Since: January 19, 2005
entire network: 4,085 Posts
KitMaker Network: 160 Posts
Member Since: January 19, 2005
entire network: 4,085 Posts
KitMaker Network: 160 Posts
Posted: Wednesday, January 31, 2007 - 06:30 AM UTC
The hydraulic lines look great. Well done.
seb43
Paris, France
Member Since: August 30, 2005
entire network: 2,315 Posts
KitMaker Network: 124 Posts
Member Since: August 30, 2005
entire network: 2,315 Posts
KitMaker Network: 124 Posts
Posted: Wednesday, January 31, 2007 - 09:04 PM UTC
Barv
One word OUTSTANDING
I love what you are doing, I wish i had such skills
Seb
One word OUTSTANDING
I love what you are doing, I wish i had such skills
Seb
